Table of Contents
Images

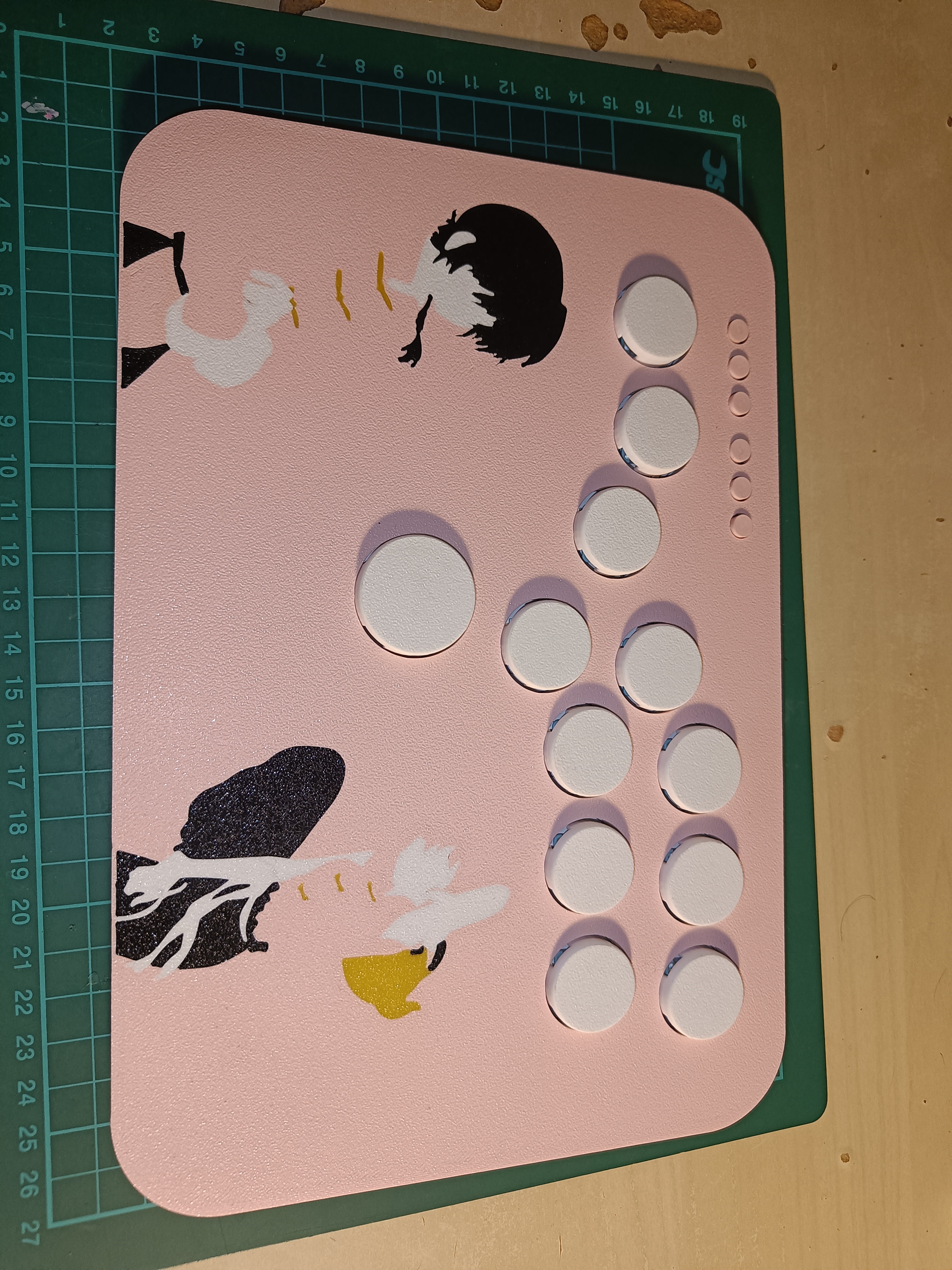

Front
Buttons used are quite small/low height so the buttons end up a bit "flat"

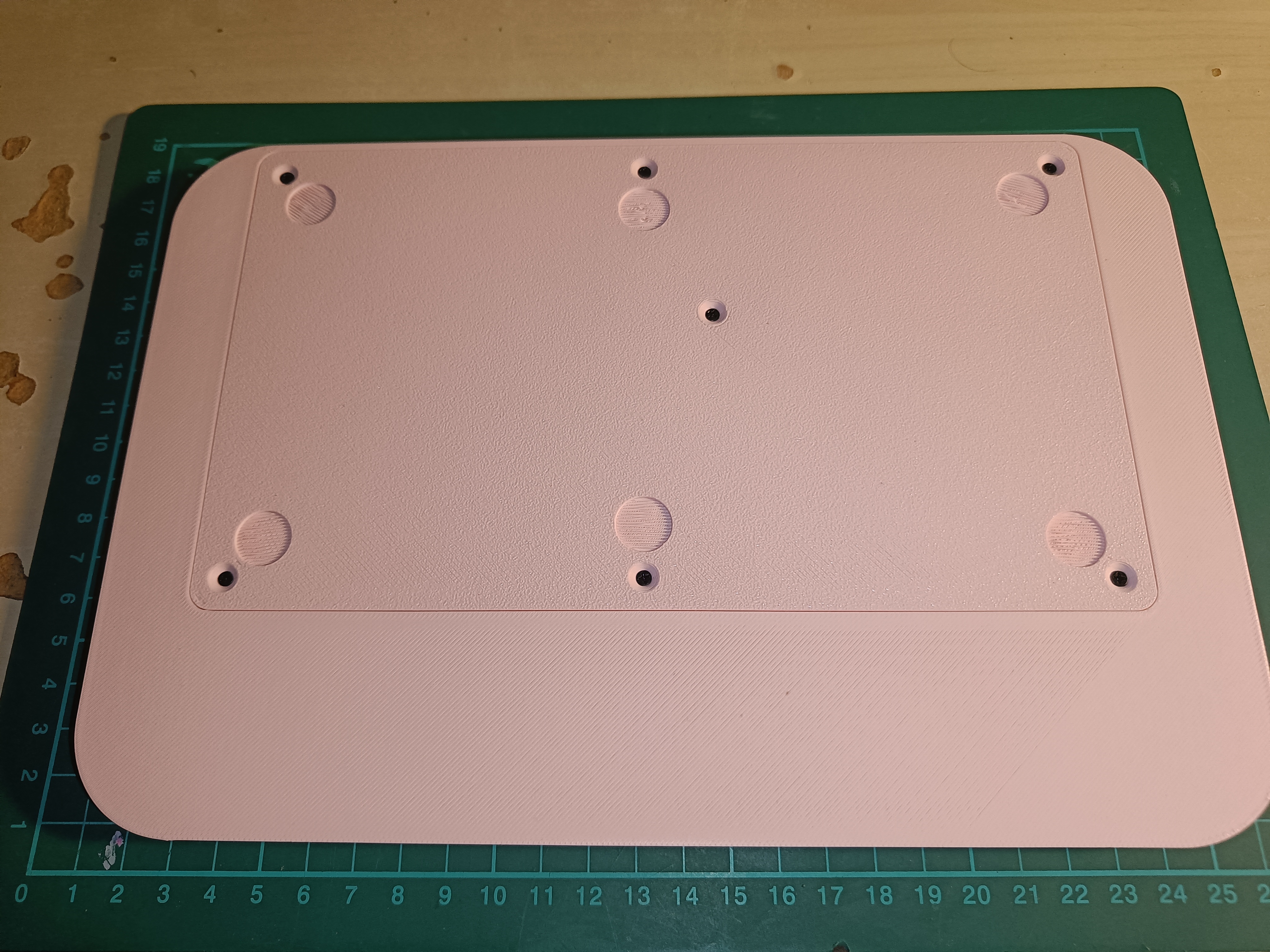

Back
Keyboard Switches
- 11 x Kailh Choc V1 Robin
- 1 x Kailh Choc V1 Jade (jump)
PCB
Flatbox rev 5
https://github.com/jfedor2/flatbox
3D Prints
Shell
i made a small change on size from the pett-j/Flatbox-Remix rev 5
https://github.com/OriolFilter/slightly_bigger_rev5_flatbox_case
Buttons
Weight
pending to fill
Connector
USB-C
Size (cm)
Pending to fill
